ZinTruss Galvanised High Tensile Lipped Channel are rolled formed from hot-dipped zinc-coated steel that conforms to International Standards (AZ1397 / JIS G3302). It is available in various thickness from 1.0mm to 2.5mm and standard width from 75mm (3") to 250mm (10"), complimented by our cut-to-length and free prepunched-holes service. Above everything else,we have invested in the latest state-of-the-art technology and only choose the best quality material in our production line to comply with our achievement of Quality management System, the ISO 9001:2000.

Product Description

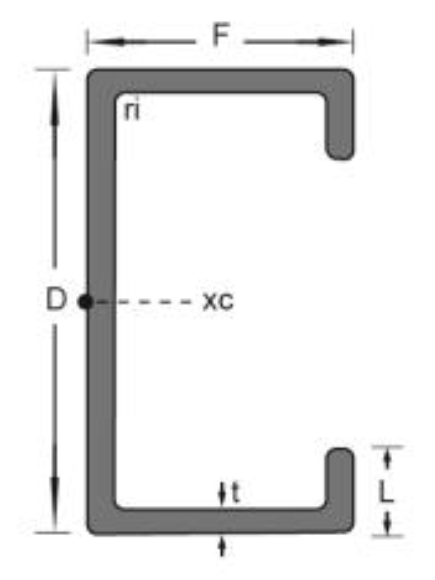

Profile Dimension

With the zinc coating and yield strength conforming tp JIS G33027 / AS 1397, Galvanised C-Lipped Channel ensure long service life, strong and will not warp, crack or sag. Commonly use as support for roofing & wall cladding.

Profile Dimension

Specification

Material Used: Hot Dipped Galvanised Steel Standard: JIS G3302/AS 1397
Available Thickness (mm): 1.0, 1.2,1.6, 2.0,2.5
Yield Strenght: Min 550 Mpa for thickness 1.0 & 1.2. Min 450 Mpa for thickness 1.6,2.0,2.5

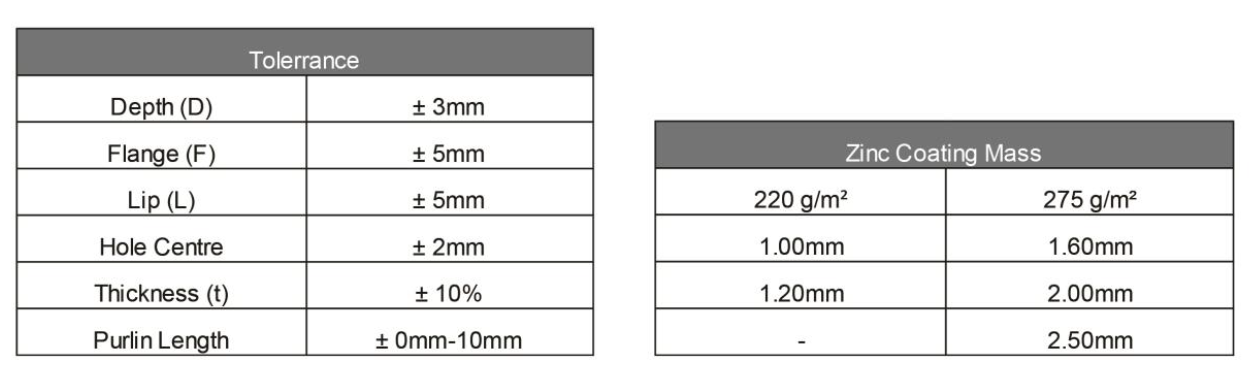

Specifications

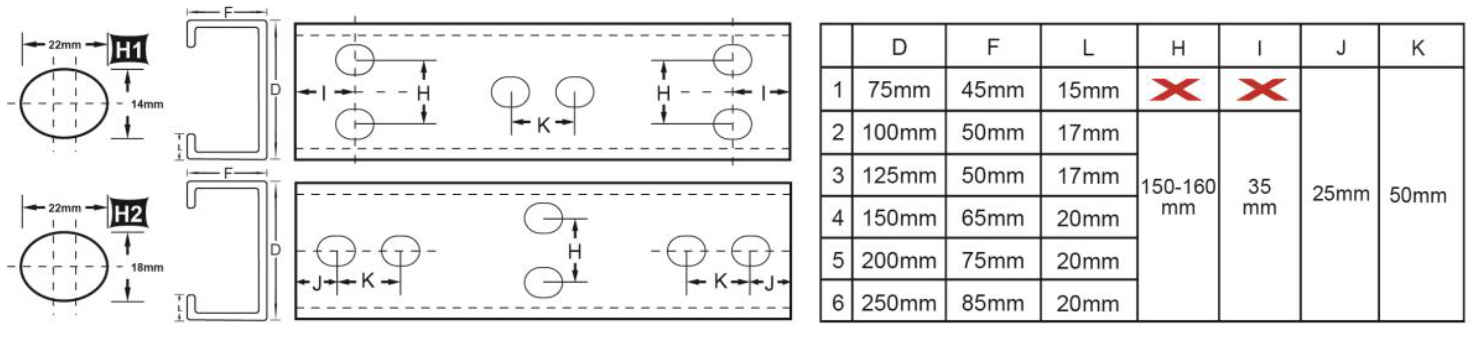

Hole Details & Gauge Lines

There are 2 types of elongated hole for customer selection. Recommendation of hole type shall refer to your requirement.

Hole Details & Gauge Lines

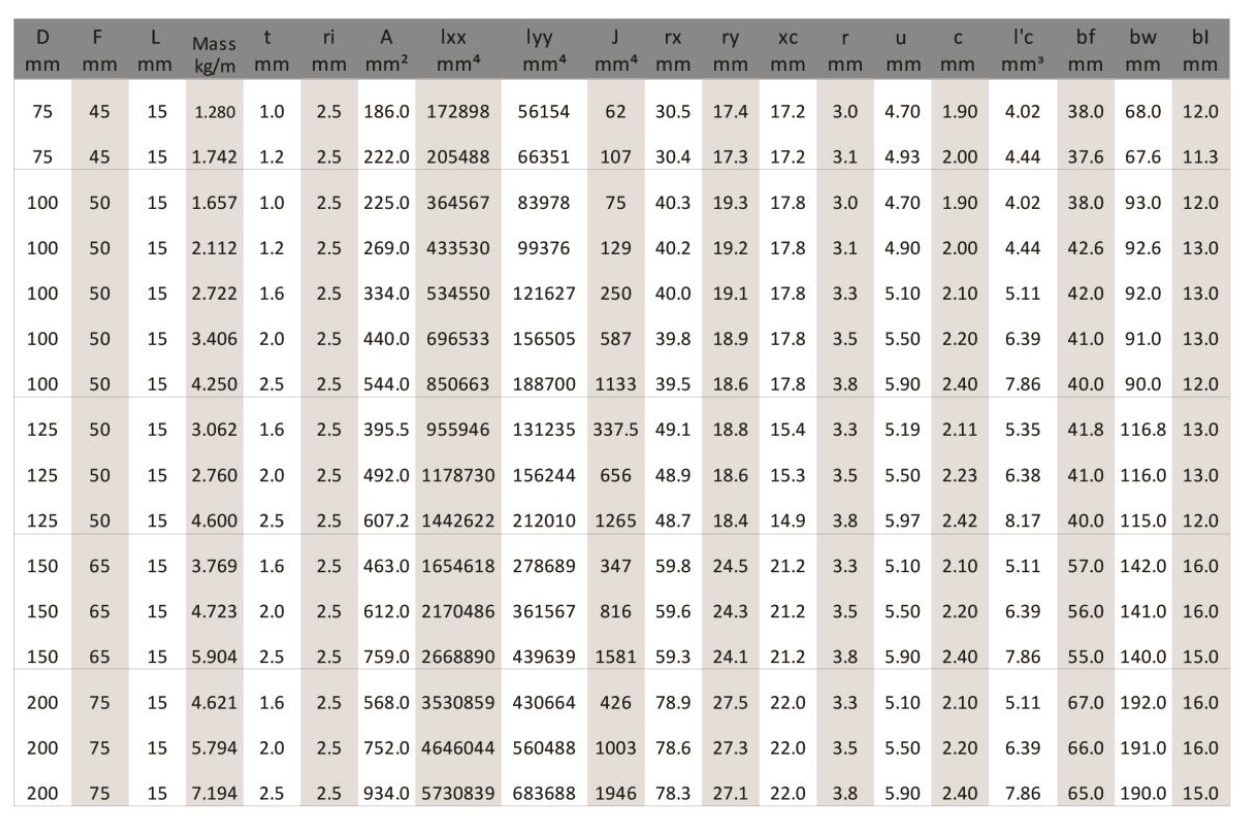

G.I. Section Properties & Dimensions

G.I. Section Properties & Dimensions

Handling & Storage

ZinTruss Galvanised High Tensile Lipped Channel should not be allowed to get wet. They should be kept under shed or wrapped under plastic sheets well ventilated and clear form ground to avoid moisture contact. Always keep the Zintruss Galvanised High Tensile Lipped Channel at a slanting angle to let water run off. If bundles become wet, the purlins should be separated, wiped with a dry cloth and placed so that air circulation completes the drying. Do not get in contact with chemicals, dirt, oil based liquids and corrosive vapours. These procedures are recommended to avoid unsightly damage to the coating which could reduce the life-span of the product. Extra care and caution must be taken while handling long length bundles. Lifting should only be carried out using a suitable beam with lifting points and carefully located slings.
