Saint-Gobain Gyproc AquaLine

AquaLine® is a gypsum board with water repellent additives in the core and encased in a special green paper lining. The board is designed to reduce the absorption of moisture from the surrounding environment while maintaining its form, function and unique features.

While it is universally used in Gyproc® drywall systems for wall linings and ceiling systems to offer moisture resistance, AquaLine® is also highly suitable as a backing board for ceramic tiling in intermittent moisture areas, and also for external soffits in sheltered positions.

Gyproc - AquaLine

Product Description

CHARACTERISTICS

Gypsum compound and papers are mixed with specially formulated substances to enhance moisture resistance.

RECOMMENDED USE

Universally used for walls and ceiling in intermittent moisture areas e.g bathrooms, toilets and kitchen, and for external soffits in sheltered position.

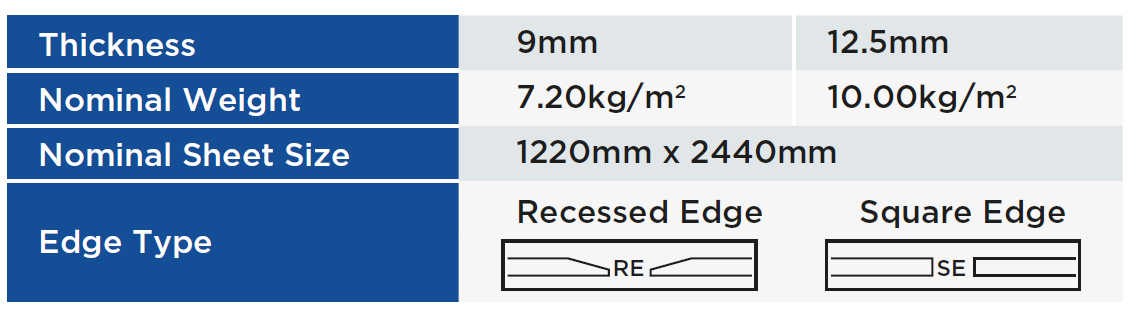

PRODUCT FORMAT

FIRE RATING

Non-combustible material in accordance to BS 476: Part 4
Low fire propagation in accordance to BS 476: Part 6
Class 1 surface spread of flame in accordance to BS 476: Part 7
Provide fire resistance in accordance to BS 476: Part 22 (BaseLine® in GypWall® system)

MANUFACTURING SPECIFICATIONS

In compliance with ASTM C1396M and BS EN 520

REACTION TO MOISTURE

The gypsum compound contains silicon oil that reduces moisture absorption.
Water absorption ≤ 5% in compliance to BS EN 520 Class H1

HANDLING AND WORKABILITY

Lightweight
Quick and easy installation
Highly flexible in creating the highest standards of design
Easily decorated
Supports tiling up to 32kg/m² using a suitable tile adhesive

HEALTH AND ENVIRONMENTAL CONTRIBUTIONS

Made from 100% natural gypsum
Recyclable material, hence environmentally friendly and certified with Green Product Certification Scheme
Does not produce toxic fumes or hazardous substances that are harmful to health
Product is manufactured in a facility that is certified to standards of ISO 14001 and ISO 9002.

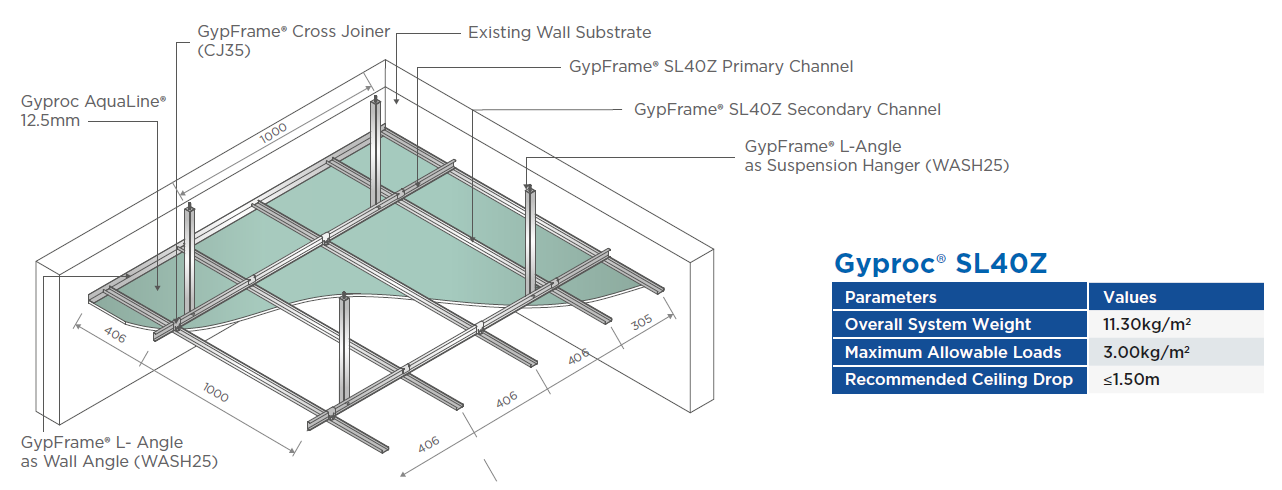

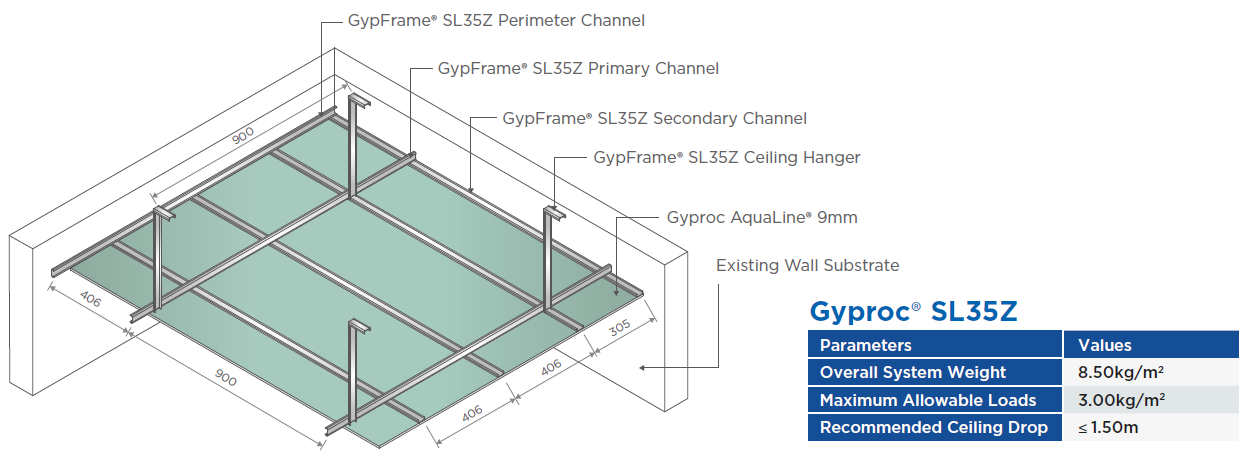

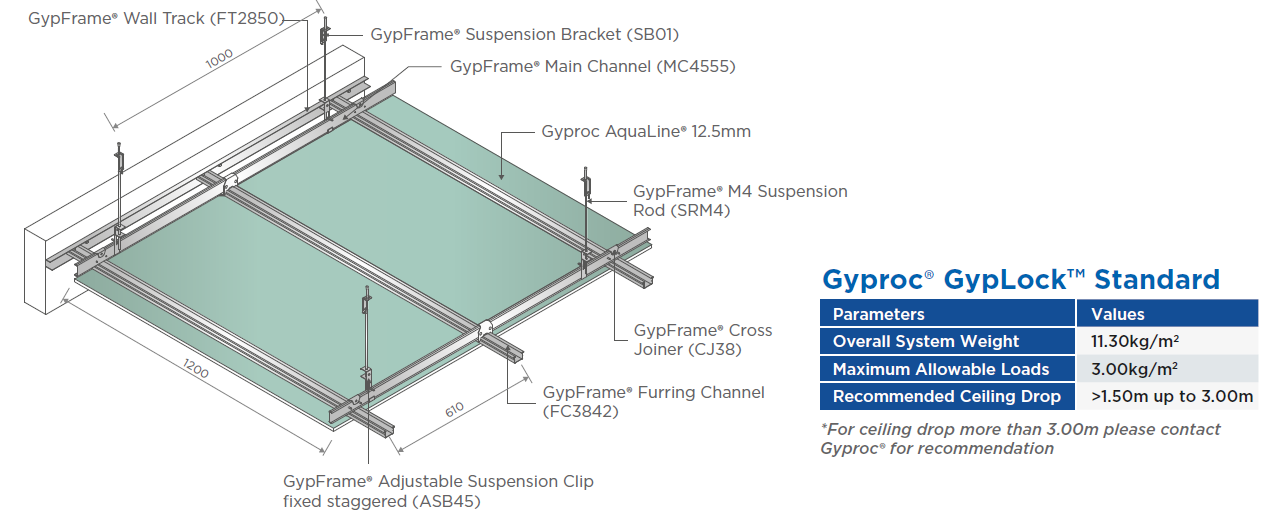

Gyproc® AQUA Concealed Ceiling System

A concealed suspended ceiling system with moisture resistance properties,offer a cost-effective and innovative alternative to traditional building material.
