WHY Gyptone® BIG?
|
|
|
| ACOUSTICS
|
|
|
| Modern interior designs demand ideal acoustic solutions. No longer are superior aesthetics the only deciding factors for choosing solutions. Each room has different acoustic requirements depending on the usage needs, room volume, use of materials and design.
|
|
|
| INNOVATION
|
|
|
| Gyptone® BIG is unique among other ceiling materials as it can take a maximum load of 3kg per m2. Fixtures can therefore be installed directly onto the products which are within this weight limit. This gives far greater flexibility with design when working with lighting, speakers or ventilations.
|
|
|
| LOW LIFE-CYCLE
|
|
|
| Gyptone® BIG products are easy to clean and maintain. Dust can be removed with vacuum cleaning or light soap water wash. Gyptone® BIG can be re-painted with acrylic emulsion paint using short-hair roller without impairing acoustic.
|
|
|
| ENVIRONMENT
|
|
|
| Gyptone® BIG is produced with resource-saving raw-materials, thoroughly tested and certified as environmentally-friendly.
|
|
|
Activ’Air® Series
|
|
|
This product series adopts the new Activ’Air technology to the Gyproc® Gyptone® product line. Gyproc® Gyptone® with Activ’Air® has a special core specifically designed to decompose harmful formaldehyde emissions present in the air into non-harmful inert compounds.
Gyproc® Gyptone® with Activ’Air® can remove up to 70% of formaldehyde1 to produce cleaner, fresher air and works for at least 50 years2.
- Available in both Suspended T-Bar Ceiling and Conceal Ceiling System
- Can be used with most paints
- Easy to install, highly durable and sag resistant
|
|
1. Tests show that Activ’Air® decomposes 70% of the formaldehyde in a controlled test environment, based on 1m2 installed per m3 of a room.
2. Provides at least 50 years of formaldehyde absorption based on tests and analysis.
|
|
|
Quattro 41 & Sixto 63 Design and Technical Data
|
|
|
| PRODUCT DESCRIPTION
|
|
|
| Gyptone® BIG is made of Gyproc plasterboard. The holes are punched in the boards with great precision. The boards are backed with an acoustic tissue.
|
|
|
| FIXING
|
|
|
| Gyptone® BIG is designed for direct or suspended screw-fixing and the boards are not demountable.
|
|
|
| SURFACE
|
|
|
| Gyptone® BIG is supplied unpainted. Painting is done on site after filling the joints. The boards are painted using a roller. The boards must not be spray-painted, as this considerably reduces their sound absorption capacity.
|
|
|
| CLEANING
|
|
|
| Depends on the surface treatment.
|
|
|
| DIMENSIONS
|
|
|
Gyptone® BIG Quattro 41: Hole size 12mm x 12mm, cc 25mm
Gyptone® BIG Sixto 63: Hole size 6mm x 12mm
|
|
|
| MAINTENANCE
|
|
|
| Repainting must be done with a roller. The boards must not be spray-painted, as this impairs sound absorption.
|
|
|
Gyptone® BIG Quattro 41
|
|
|
| ACOUSTICS PERFORMANCE
|
|
|
| These measurements meet the requirements of ISO 354. All measurements were carried out on standard boards with acoustic tissue laminated on the back. The construction height specifies the distance between the undersides of the suspended ceiling and the existing construction. The board’s sound absorption is affected by the construction height and by any mineral wool installed behind them.
|
|
|
|
|
|
| PRODUCT DESCRIPTION
|
|
|
|
|
|
| SURFACE
|
|
|
| Painting is done on site after filling the joints. The boards are painted with a short hair roller.
|
|
|
| ADVANTAGE
|
|
|
| Four tapered edges help with quick and easy jointing and aesthetics.
|
|
|

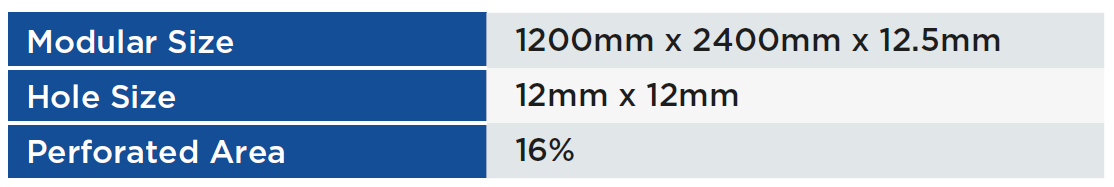

| TECHNICAL DATA
|
|
|
| Acoustic performance NRC=0.75
|
|
|
|
|
|
Gyptone® BIG Sixto 63
|
|
|
| ACOUSTICS PERFORMANCE
|
|
|
| These measurements meet the requirements of ISO 354. All measurements were carried out on standard boards with acoustic tissue laminated on the back. The construction height specifies the distance between the undersides of the suspended ceiling and the existing construction. The board’s sound absorption is affected by the construction height and by any mineral wool installed behind them.
|
|
|
|
|
|
| PRODUCT DESCRIPTION
|
|
|
|
|
|
| SURFACE
|
|
|
| Painting is done on site after filling the joints. The boards are painted with a short hair roller.
|
|
|
| ADVANTAGE
|
|
|
| Four tapered edges help with quick and easy jointing and aesthetics.
|
|
|
| TECHNICAL DATA
|
|
|
| Acoustic performance NRC=0.70
|
|
|
|
|
|
Gyproc® Acoustic Concealed Ceiling System
|
|
|
| Gyproc® Acoustic Concealed Ceiling System, with eye-catching perforated designs, coupled with an integral sound absorbent tissue backing, make Gyptone® acoustic ceiling boards the natural choice for creating the ideal acoustic ceiling system.
|
|
|
|
|
|
|
|
|
